Universal Heat Recovery Steam Boiler HRSB

Heat recovery systems

Universal Heat Recovery Steam Boiler HRSB

The heat recovery boiler uses accumulated flue gas heat to generate process steam.

Environmentally friendly generation of steam from available waste heat
The perfect addition to energy concepts involving combined heat and power generation
High efficiency through efficient tubular heat exchanger and thermal insulation
Additional efficiency gain thanks to optional integrated economiser
Matched, modular system for easy planning and fast installation

Benefits

Overview

Used in conjunction with a combined heat and power unit, the heat recovery steam boiler HRSB can play a significant part in strategies for using primary energy efficiently. The hot flows of flue gas from the upstream combustion processes are conducted into the heat recovery boiler and used for steam generation purposes. Thanks to its modular design and compact dimensions, it is the ideal choice for both new plants and modernisation projects alike.

Construction

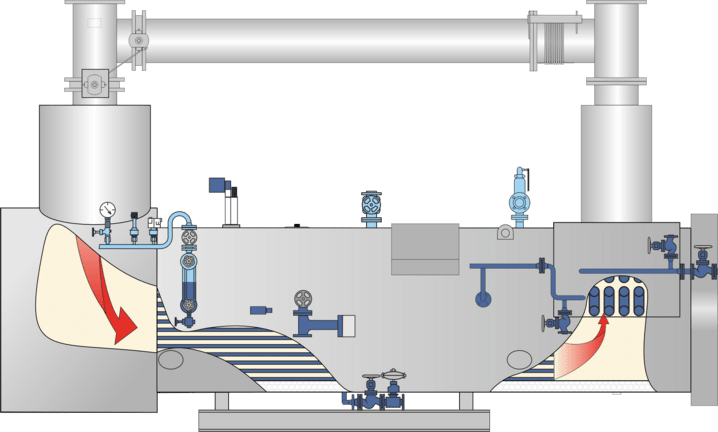

The heat recovery steam boiler, which is certified in accordance with the PED (Pressure Equipment Directive), is available in eight standardised versions. It consists of a highly efficient tubular heat exchanger. An economiser can be integrated as an option, which increases the efficiency of the heat exchanger even further. A flue gas bypass can be added if required. If no steam is extracted, the boiler will use this for diversion on the flue gas side. This means that the CHP unit or other waste heat sources can continue operating without interruption.

Equipment level

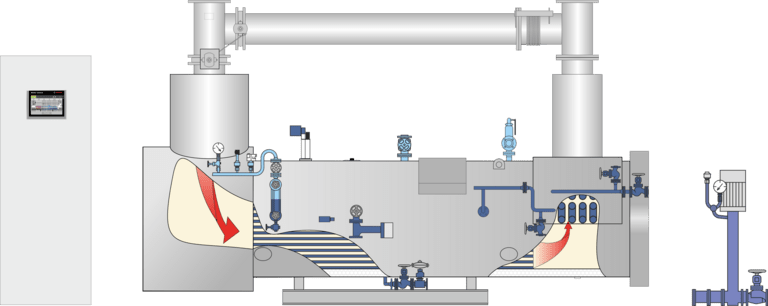

The heat recovery steam boiler is insulated and features state-of-the-art safety equipment. The flue gas bypass is supplied separately to facilitate transportation and is fitted and insulated on site. The boiler control BCO, based on PLC, can be controlled via touchscreen and is housed in a separate floor standing or wall mounted control switchgear cabinet.

Basic Equipment

A variety of equipment options to suit customer requirements

Technical Details and Documents

Documents

Data sheets	Download now
Steam boilers brochure	Download now

Technical data

Heat transfer medium	High-pressure saturated steam
Design	Heat recovery shell boiler
Output	400 to 4,100 kg/h
Safety pressure	10 and 16 bar
Max. flue gas volumes of the waste heat source	550°C
Min. flue gas volumes of the waste heat source	500 kg/h
Max. flue gas volumes of the waste heat source	23,500 kg/h
Waste heat source fuel	Natural gas (other flue gas types on request)
Output range of combinable CHP units	approx. 0.5 to 4 MWel
